Réf 432

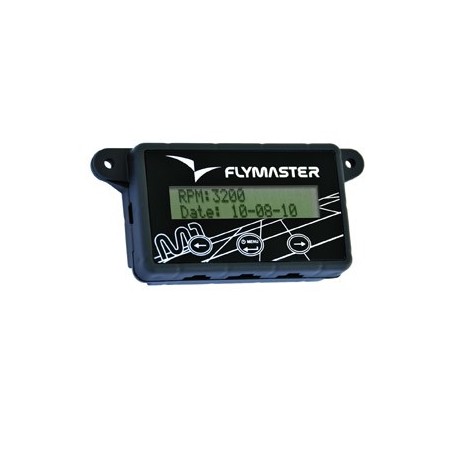

Flymaster - M1

For motor

Availability :

Available at supplier - 5 a 10 days
€282.50
  • Free VIP card from 1 000€
  • Shipping free to France from 100€
  • Shipping free to UE/CH/UK from 500€
  • Payment in instalments from 1 000€

Free Shipping to European Union + UK + Switzerland from 400€

The Flymaster M1 turns any Flymaster flight instrument into an onboard motor management system for powered aircraft. Flymaster's M1 gathers precissely gathers information from several sensors connected to the motor, recording this data and sending it via an RF interface to Flymaster instruments.

M1's high capacity memory is capable of storing motor data at regular intervals from 1 second up. This data can then be downloaded to a PC for later analysis. Using the gathered data the user can plan preventive maintenance and detect possible abnormalities in the motor. The data collected by the M1 is sent wirelessly, in real time to any of the existing Flymaster instruments. Several data items including average fuel consumption, total flight and remaining time, current motor temperatures, etc, can be viewed on the high resolution displays provided by Flymaster instruments. A pilot can use his Flymaster instrument for free flight or connect it to the M1 for motorized flying, giving the Flymaster instrument a dual function.


Hardware Characteristics


Display Resolution 2*16 Charaters
Screen size (true viewing area) 66x16 mm
Battery Capacity (Lithium-Ion) 1750 mAh
Autonomy > 30 hours
Temperature Sensor Resolution 1 ºC
Motor Speed Sensor Resolution 1 r.p.m.
Fuel Sensor Resolution (Optional) 1 cl
Size 115x50x24 mm (Length x Width x Thickness)
Weight 105 gr
RF Interface Allows the wireless connection to any flymaster instrument up to 10m distance
Native USB Connection Allows connection to the PC to upload Motor Data
Firmware update by USB (upgrades are free)

Main Features


  • Current flight duration
  • Total flight duration
  • Motor Speed (r.p.m.)
  • Motor Temperature
  • Fuel quantity (optional fuel sensor required)
  • Average fuel consumption (optional fuel sensor required)
  • Remaining Fuel Time (optional fuel sensor required)
  • Flight Log
Category - Instrument Paramotor
Category Instruments Brand Flymaster
