Réf 15198

Ozone - Delta 5

pure xc

Availability :

1 month lead time
0 Item
€5,340.00
€4,432.20 Save 17%
Tax included
Size

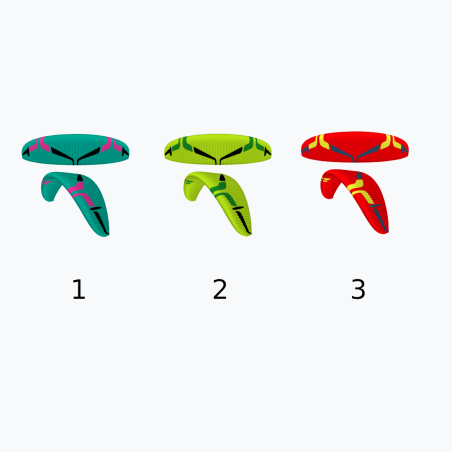

Color

Ozone paragliders are now delivered without back pack included, please see accessories here under if needed

  • Brand new low aspect 2-liner design
  • Legendary Delta accessibility, solidity and agility
  • Simple take-off behaviour in all conditions
  • Improved accelerated control, True-Performance
  • Direct and precise handling
  • New risers with height-adjustable B handles

The Delta legacy continues. The 5th generation has been designed to be the reference in comfort, ease of use and performance, with improved full speed efficiency and control thanks to the 2-line design.

THE PILOT

The Delta is designed for intermediate to advanced level pilots and is the ideal stepping stone into 2 line technology. Suitable for those moving up from a high-B glider and for the more experienced pilots wanting 2-liner control and performance in a lower aspect package for unparalleled ease of use.

THE TECH

The Delta is our lowest aspect ratio 2-liner wing. Derived from the Photon and developed using all of the knowledge gained from years of competition experience and 2 line technical know how, the Delta is a solid compact platform ideal for XC flying in the most demanding conditions. The 2-line design allows for direct angle of attack control and reduced line drag for exceptional good levels of performance and ease of use never seen before in such a low aspect ratio concept. Compared to its predecessor, inflation, performance, accelerated control and general ease of use has been improved with absolutely no compromise to our True Performance promise.

The new inner structure architecture is optimised for structural integrity and low canopy weight, the wing absorbs turbulence without losing span cohesion so the wing remains compact even in the strongest air which is a very desirable characteristic for responsive handling on the strongest of conditions.

CERTIFICATION

The Delta 5 is certified EN-C with folding lines.

IN FLIGHT

The new Delta retains the ease of use and True Performance characteristics of its predecessor.

The 2 line architecture has allowed for an easier inflation process in all conditions, the wing tips are less likely to rise first. It does not overshoot in strong winds, rises fast and easy in nil-wind, and is generally more forgiving than any of our other 2 line designs.

The Delta offers a precise brake input response with high levels of roll and yaw authority, the direct feel is achieved whilst retaining an overall long brake travel that accepts deep inputs whether instantly changing the roll/yaw response in the thermal or for slowing the wing when performing challenging landing approaches.

Big ears can be performed with either the AR3 or BR3 technique. The AR3 requires a firm pull to initiate - we did not want to compromise the wing tip solidity in normal flying - but once in remains stable throughout the speed range. Big ears with BR3 are less effective but easier to initiate and faster to recover.

The Delta features new risers with adjustable B-handle heights, enhancing ergonomic control to accommodate pilots of all shapes and sizes.

Specifications

Size XS S MS ML L XL
Number of Cells 65 65 65 65 65 65
Projected Area (m²) 16.4 17.9 19.4 20.7 22.04 23.7
Flat Area (m²) 19.3 21.1 22.8 24.4 25.9 27.8
Projected Span (m) 8.66 9.05 9.41 9.73 10.03 10.4
Flat Span (m) 10.82 11.31 11.76 12.16 12.53 13
Projected Aspect Ratio 4.57 4.57 4.57 4.57 4.57 4.57
Flat Aspect Ratio 6.07 6.07 6.07 6.07 6.07 6.07
Root Chord (m) 2.25 2.35 2.45 2.53 2.61 2.71
Glider Weight (kg)* 4.58 4.8 5.15 5.44 5.71 5.98
Certified Weight Range (kg) 60-75 65-85 75-95 85-105 95-115 110-130
Certification EN-C** EN-C** EN-C EN-C EN-C EN-C**

* Wing weight may vary up to 50g per size due to slight variations in the manufacturing of the fabric used.

** Pending

Materials

  • Top Surface Cloth: Dominico 30D
  • Bottom Surface Cloth: Dominico 30D
  • Rib cloth: Porcher 9017 E29 (hard) / Dominico 30D FM
  • Upper lines: Edelrid 8001 serie
  • Mid lines: Edelrid 8001 serie
  • Lower Lines: Edelrid 8001 serie
Category - Paraglider .EN C
Activity - Paraglider .Leisure standart
Category Paragliders Brand Ozone
